UL 18 Channels 12VDC Regulated Distributed Auto reset Fused Wall mount Power Supply panel individually fused 20AMP output	W-CCTV12VDC-18P/20A-UL

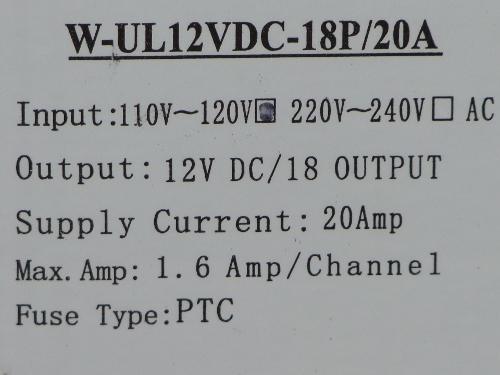

12VDC 1.6Amp Max Output Per Channel

List Price: $279.99

Your Price: $160.99

You Save: $119.00 (43 %)

Personalization

* denotes required field

Add Power plugs 8 inch 2.1MM*

Add Power plugs 36 inch 2.1MM*

Quantity:

Detailed Description

New U.S. Security solutions wall mounted UL Listed 12VDC-18P/20Amp 18 Channels Regulated Switching power supply Panel: 110V~120VAC input 12VDC 20Amp Output 18 Port 1.6Amp Max output per Channel UL Listed DC Wall mounted CCTV Security/Alarm Power supply panel Provide 12VDC distributed via Eighteen (18) Channels PTC resettable fuse protected outputs for multitude of purposes powering CCTV Cameras, heaters and other video accessories. Our power Solutions technologies for professional security system applications, innovative and integrate with any installation to maximize overall performance and efficiency.

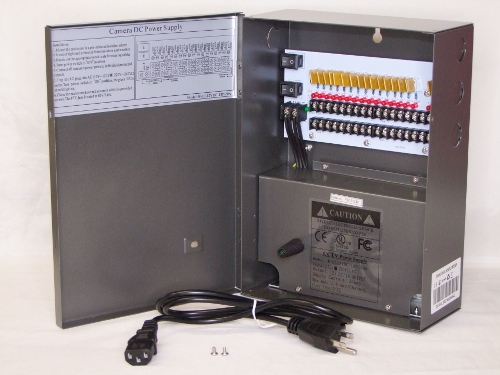

Box contains: UL Listed 18 Channel Power supply panel, Power supply cable.

Hover Your mouse over the small images to enlarge

	Features ;
	* Wall mounted Power supply panel.
	* Input 110V~120V AC 60Hz. UL Listed
	* Output 12VDC 20Amp Supply Current.
	* 18 individual fused Output channels .
	* Max Output of 12VDC 1.6Amp per channel .

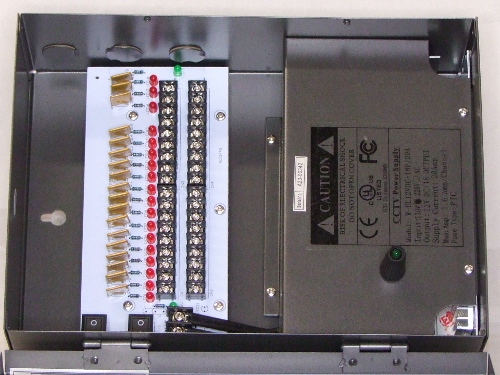

	* Individual PTC auto reset fuse for each output channel.
	* Individual LED statues indicator per channel.
	* LED statues for main power supply.
	* Main power switch control with surge protection.
	* DC output using Switching Power Technology Regulated and filtered power output.
	* When over voltage occurs, it will be switch to self-protection status to protect the load.
	* When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output work normally, when clearing of fault, then switch back to normal.
	* When short-circuit occurs, individual PTC fuse will break the circuit, when clearing of fault, it switch back to normal automatically.

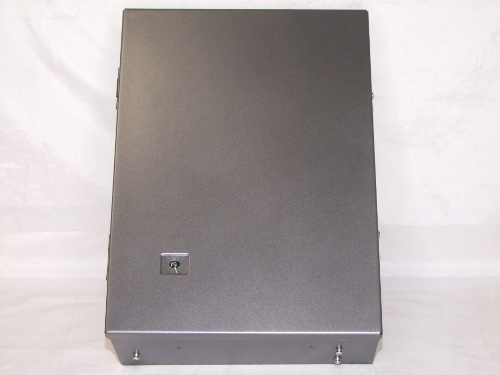

	* Commercial Metal cases with built in knockout for easy install.
	* Size 11.5 X 8.5 X 3.5 Inches.
