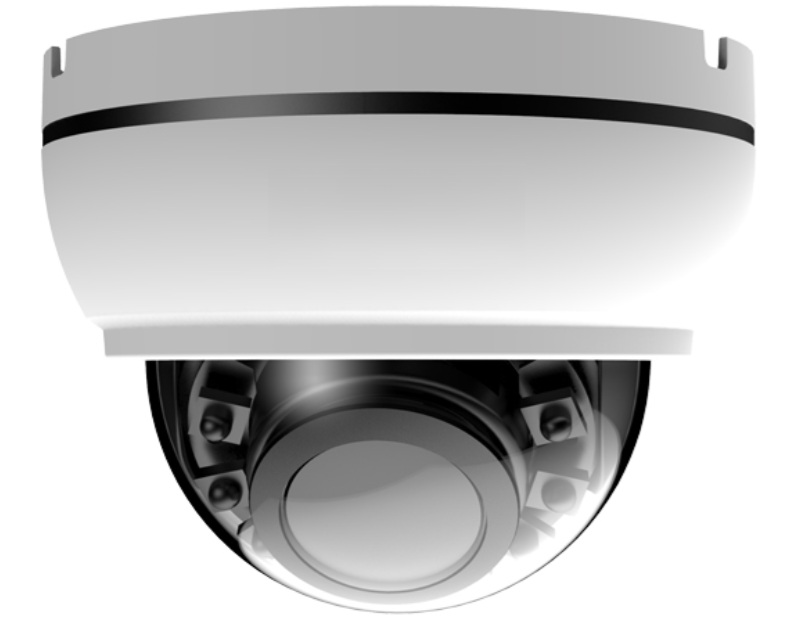

New Vari-Focal AHD 5MP 2K Indoor wide angle 2.8-12MM IR dome HD-AHD Cameras
|
USIRD5MP30PU4W-MVF
|
|
U.S Security Solutions 2.5K 2592X 1944P 5MP 4 in 1 HD-AHD White IR Indoor VF Dome
|
List Price: $99.99
Your Price: $51.74
You Save: $48.25 (48 %)
* Whole number only
Detailed Description
New U.S Security Solutions USIR5MP30PU4W-MVF 5MP Universal 4 in 1 2.5K High Definition 1944P White Vari-Focal IR night vision 2.8MM Super Wide to 12MM Zoom Indoor Dome : This Dome is High-definition output up to 5MP HD-TVI/ 4MP HD-CVI/ 5MP AHD/ 900TVL Analog 960H 4 in 1 Universal Camera employs 1/2.7 5 Mega pixel Progressive Scan CMOS sensor high quality day and night with IR cut. A 2.8MM Super Wide to 12MM Zoom manual adjument 5MP Lens for quality HD up to 2592 x 1944 full 1944P 20FPS resolution that meet today’s need. A built in IR LED and IR Cut sensor for true coloring and superior black and white night vision operations.
Plastic 3 Axis adjustment body design, 12VDC power make quality installation a snap.
Four in one HD-TVI / HD-CVI / AHD / Analog 960H this camera changeable and configured through the UTC option on your recorder or the built in selector on the output cable to switch output resolution and camera setting and configuration work with most DVR'S on the market UP to 2800TVL in 1944P output or switch it to analog 960H at 900TVL, Please refer to your DVR user manual to make sure it support UTC control.
The new 1/3" 5 Mega Progressive Scan CMOS Color imaging sensor, IR cut Sensor which provides extremely long life and high reliability. A superior Night vision IR LED effective range reaches up to 25 meters (75 Feet) simply the best on the market.
Upgrade your imaging quality with this 4 in one 2.5K Camera Buy directly from U. S. Security Solutions a U.S.A Company a manufacturer specializes in CCTV camera recorder and accessories outstanding service and warranty, best quality product exactly as specified and described at affordable price, tested to be the best.
Box contains: Camera, Screw set, 2.1MM power plug.
Hover Your mouse over the small images to enlarge
| Model |
US-IRD5MP30PU4W-MVF |
| Pick-up Element |
1/3" 5MP Progressive Scan sensor |
| Number of Pixels |
Up to 2592 X 1944P |
| Resolution |
Selectable through UTC
HD-TVI/AHD 5MP 2592 X 1944P @ 20/12.5 FPS, 4MP 2560 X 1440P @ 30/25 FPS, 2MP 1920 X 1080P @ 30/25 FPS,
HD-CVI 4MP 2560 X 1440P @ 30/25 FPS 2MP 1920 X 1080P @ 30/25 FPS
Analog CVBS 960H PAL 25FPS NTSC 30FPS |
| Min. Illumination |
0.5Lux / F2.0, 0Lux (IR ON) |
| IR LED |
LED |
| OSD |
Built in |
| ICR |
Built in IR Cut |
| Signal |
NTSC 960H / HD-TVI / HD-CVI / AHD Selectable through UTC |
| Effective Range |
Up to 25 Meters (75 feet) |
| S/N Ratio |
More than 50dB (AGC OFF) |
| Electronic Shutter |
Auto 1/60 (1/50) to 1/30,000 sec. |
| Lens |
F2.8MM-12MM 5MP lens |
| Lens Angle |
120 |
| Sync. System |
Internal |
| Auto Gain Control |
Auto |
| IRIS Mode |
Auto |
| White Balance |
Auto |
| Case |
Plastic |
| Case Color |
White |
| WDR |
No |
| SD out |
Yes |
| Video Output |
1.0 Vp-p composite, 75Ω/ HD-TVI |
| Power Source (10%) |
DC12V |
| Microphone |
NO |
| Audio output |
None |
| Current Consumption (10%) |
500mA (IR ON) |
| Dimensions (mm)** |
90(W) X 110(H) |
| Manufacturer |
U.S. Security Solutions |
| U.S. Warranty |
One (1) Year Limited Warranty |
